"I can’t blog about the pug 607 all the time, especially as it’s been behaving since August. So, I thought that I’d make this blog about practical upcycling or the art of turning disparate unwanted stuff into something that meets a need."
14/12/2022: I looked at turning an unwanted Formica topped coffee table, a four-speed kitchen extraction fan, eight adjustable table legs, and some flexible ducting into just what I need - a modular custom workbench, laser cutting, and spray-painting station!
image credit: Sidekix Media on unsplash.com
Background
Since moving to my new studio, two practical issues became apparent.
- I can work at a desk but as soon as I need to work with multiple computers, wood, glass, ceramic, and acrylic it's not ideal. I need somewhere to clamp my work pieces in place while I’m working on them. The simple answer is I need a workbench!
- Laser cutters can produce quite a lot of fumes, so I need an efficient method of venting them. Also, adding a spray-painted finish to work pieces is not something you want to do without a good extraction system.
As I needed a modular, expandable and customizable set up, “off-the-shelf” solutions are out of the question, and don’t fit with the ethos of Octagon Upcycle – “Turning broken, tired, infirm, unwanted gadgets, furniture, and accessories into timeless and practical designs!”
So, I looked at turning an unwanted Formica topped coffee table, a four-speed kitchen extraction fan, eight adjustable table legs, and some flexible ducting into just what I need – a modular, custom-made workbench, laser cutting, and spray-painting station!
Getting the raw materials
After searching marktplaats.nl, I sourced a very sturdy (and heavy) 135 x 80 cm coffee table in Amersfoort, an ATAG stainless steel kitchen extractor from Hilversum, eight chromed 70 x 6 cm steel legs from Hooglanderveen, and some other important bits and pieces from Zwartebroek.
All local to me, and destined for landfill, so a pretty low carbon footprint there!
Putting it all together!
You need to have an idea of what the finished product will look like. I’ve always been big on modularization, standardization and reproducibility because they are the keys to quality. Don’t make a jig that can make a single item, make one that makes 20 identical items every time. This entailed making standard modules, components and accurate jigs.

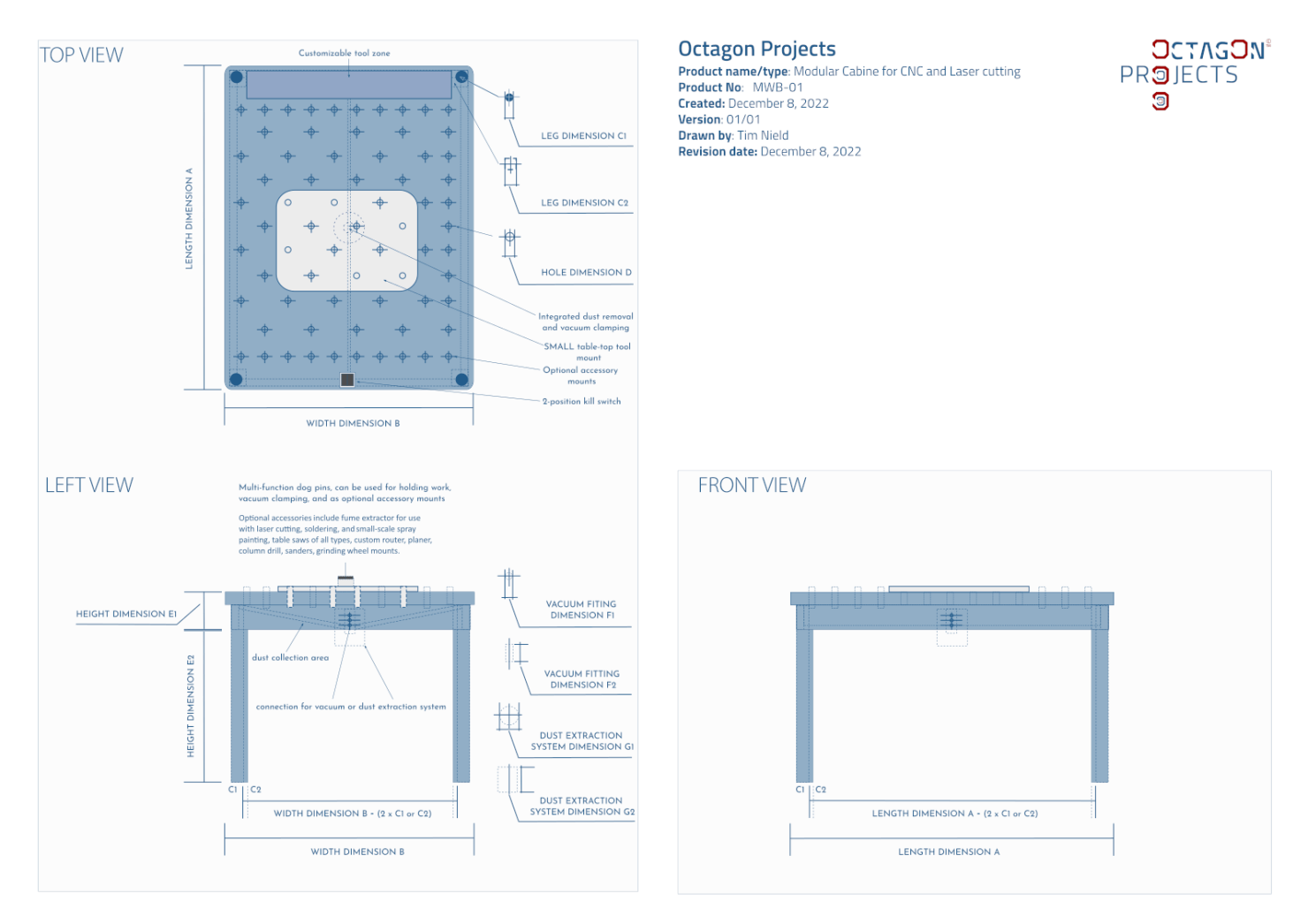

So, I sat down and made engineering drawings that make the prototype I’m making for myself, into a reproducible product that can be made available to customers as a plan or in kit form.
The work started with marking up the coffee table for drilling and stripping off the unnecessary components – legs, leg-spanners and mounting brackets. Even without these items the table top is 5 cm thick and weighs about 35 kg!
Then, I added four adjustable 70 x 6 cm chromed steel legs to raise the workbench to a practical height. This done, I used the drilling jig and started drilling 80 x 20 mm diameter holes for dog blocks. After a few battery recharges, I finally drilled the last one. I used a cone cutter to remove any rough edges on the top surface.
After this I caught Corona for the first time! Just part of life's rich tapestry . . .
More modules with the emphasis on turning the hand tools people have laying around in to table-based tools.
Now it was time to build the extraction module. The primary use for this module is fume extraction while laser engraving and cutting, so the base laser cutter needs to fit comfortably under the extraction intakes. After one false start, I cut the recess in the extraction fan mounting board (18 mm pine, which was a mistake) and screwed the 15-20 kg extractor to it with long self-tapping screws.
Everything looked good until I mounted the legs to the support board and the weight of the extractor started to warp its mounting board. Not a deal-breaker, but an irritation all the same. To correct the situation, I affixed one of the 5 x 2 x 100 cm stretchers as a cross member to spread the weight of the extractor. Problem solved!
To prevent over-spray when airbrushing or spray-painting work pieces, I needed to add a clear non-permeable curtain. The only practical option for now is building plastic, so I made the overspray curtain from it and hung it using Velcro strips.
The last construction steps were connecting the ducting to the extractor, and make a spoil board which drops into the dog block holes and prevents overspray reaching the working surface. Job done!
There is always a but with prototypes and in this case, I was prepared to let the visual esthetic take a backseat to prove the concept. So, the Extraction module while fully functional, needs a little refinement to solve the bending issue without a cross member.
User safety
I’ve spent enough time working in industry to know that safety comes first. All the power sockets are powered through a large 2-position switch mounted on the top of the workbench. This makes it easy to kill the power when needed.
What's next?
More modules but with the emphasis on turning the hand tools people have laying around in to table-based tools.
- Wheels! Though I have exactly what I need for now, I also need to e able to move it out of the way when I’m not using it, so the obvious solution is industrial wheels.
- Table-top router module. Hand routers are generally heavy and unwieldy items but for finishing they are unmissable.
- Table-top circular saw module. A stable and true saw is a necessity when cutting down stock to the required tolerances.
- Drill-press and column drill module.
- Disk and band sander module
That's the first practical upcycling blog. Keep an eye on Octagon Upcycle to see what we're working on. Better still, drop me a mail and I'll add you to the mailing list.
